用Arduino Nano復制Dino Run手機游戲
掃描二維碼
隨時隨地手機看文章
把經典的Dino Run變成親身體驗!使用Arduino Nano，以有趣，引人入勝的方式將互動游戲帶入生活!
我們將使用Arduino創建一個簡單的“Dino Run”游戲，并使用PCBX在線模擬。
硬件需求
?Arduino板(如Arduino Uno)
?OLED顯示屏(如SSD1306)
?按鈕
?電阻器(10kΩ按鈕)
?連接電線
軟件需求
?Arduino IDE編碼
?用于模擬項目的PCBX在線模擬器

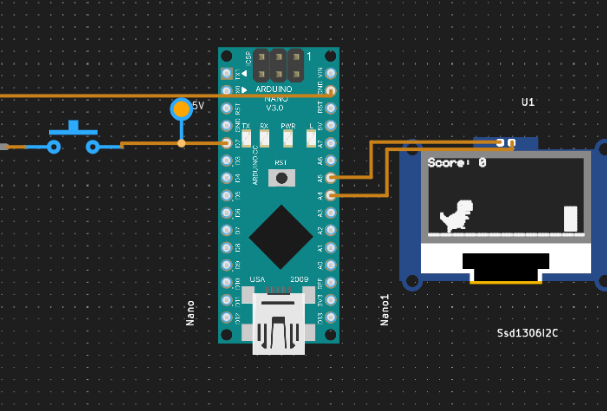

接線圖
在深入編碼部分之前，讓我們先設置電路。這是連接OLED顯示器和Arduino按鈕的基本接線圖：
OLED顯示器連接：
?VCC到Arduino 5V
?GND到Arduino GND
?SCL到Arduino A5 (I2C時鐘)
?SDA到Arduino A4 (I2C數據)
按鈕連接:
?一端到Arduino引腳2
?另一側到GND(帶上拉電阻連接5V)

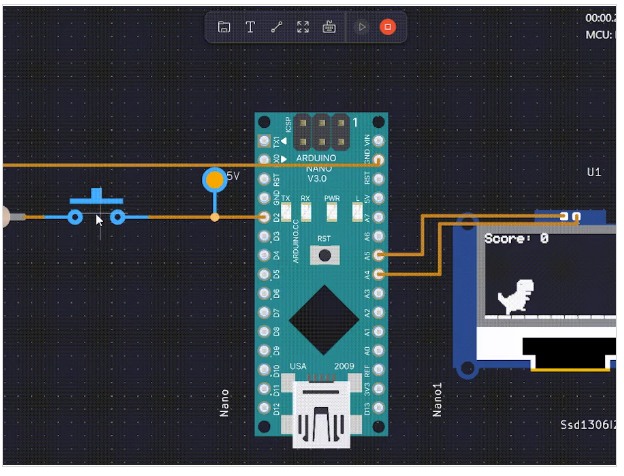

?用PCBX模擬項目
要在線模擬這個Arduino項目：
?訪問PCBX：進入PCBX在線仿真網站。
?模擬項目在線：項目代碼和詳細信息在這里：
結論
現在，您已經使用Arduino創建了一個簡單的“Dino Run”游戲，并使用PCBX在線模擬了它。這個項目不僅展示了基本的游戲機制，還使您熟悉使用I2C設備，如OLED顯示器和Arduino。你可以隨意修改游戲。
代碼
#include
#include
#include
#define SCREEN_WIDTH 128 // OLED display width, in pixels
#define SCREEN_HEIGHT 64 // OLED display height, in pixels
#define BUTTON_PIN 2 // Pin for the jump button
// Declaration for an SSD1306 display connected to I2C (Wire)
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
// Bitmap data for the dinosaur image
const unsigned char dinosaur[] PROGMEM = {
0x00,0x00,0xFF,0x80,0x00,0x01,0xFF,0x80,0x00,0x03,0xFF,0xC0,0x00,0x03,0x3F,0xC0,
0x00,0x03,0xFF,0xC0,0x00,0x03,0xFF,0xC0,0x00,0x03,0xFF,0xC0,0x00,0x03,0xFF,0xC0,
0x00,0x03,0xF0,0x00,0x00,0x07,0xFF,0x00,0xC0,0x0F,0xFF,0x00,0xC0,0x3F,0xF0,0x00,
0xE0,0xFF,0xF0,0x00,0xF1,0xFF,0xFC,0x00,0xFF,0xFF,0xFE,0x00,0x7F,0xFF,0xF0,0x00,
0x3F,0xFF,0xF0,0x00,0x1F,0xFF,0xF0,0x00,0x0F,0xFF,0xE0,0x00,0x07,0xFF,0xE0,0x00,
0x03,0xFF,0xC0,0x00,0x03,0xFF,0xC0,0x00,0x03,0xF8,0x70,0x00,0x03,0x80,0x00,0x00,
0x03,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x01,0x80,0x00,0x00,};
int dinosaurX = 10; // Initial x position of the dinosaur
int dinosaurY = 35; // Initial y position of the dinosaur
int dinosaurHeight = 26; // Height of the dinosaur image
int dinosaurWidth = 27; // Width of the dinosaur image
bool jumping = false; // Flag to indicate if the dinosaur is jumping
int jumpHeight = 5; // Jump height in pixels
int jumpSpeed = 10; // Speed of the jump
int jumpCounter = 0; // Jump counter
bool buttonPressed = false; // Flag to indicate if the button has been pressed
bool gameOver = false; // Game over flag
int score = 0; // Score
int obstacleX = SCREEN_WIDTH; // Initial x position of the obstacle
int obstacleY = 40; // y position of the obstacle
int obstacleWidth = 10; // Width of the obstacle
int obstacleHeight = 20; // Height of the obstacle
int obstacleSpeed = 8; // Speed of the obstacle
void setup() {
pinMode(BUTTON_PIN, INPUT_PULLUP); // Set the button pin as input with pull-up resistor
if(!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // 0x3C is the I2C address of the OLED display
Serial.println(F("SSD1306 allocation failed"));
for(;;); // Do not proceed
}
display.clearDisplay(); // Clear the display
display.setTextSize(1); // Set text size
display.setTextColor(WHITE); // Set text color
}
void loop() {
if (gameOver) {
display.clearDisplay();
display.setCursor(0, 0);
display.println("Game Over!");
display.println("Score: " + String(score));
display.display();
delay(2000);
return;
}
// Check if the button is pressed (button is normally HIGH, LOW when pressed)
if (!jumping && !buttonPressed && digitalRead(BUTTON_PIN) == LOW) {
buttonPressed = true;
jumping = true;
jumpCounter = 0; // Reset jump counter when starting a jump
}
if (jumping) {
if (jumpCounter < jumpHeight) {
// Ascend phase
dinosaurY -= jumpSpeed;
} else if (jumpCounter >= jumpHeight && jumpCounter < jumpHeight * 2) {
// Descend phase
dinosaurY += jumpSpeed;
} else {
// End jump
jumping = false;
dinosaurY = 35; // Reset the dinosaur to the initial y position
buttonPressed = false; // Reset button pressed flag
}
jumpCounter++;
}
// Move the obstacle
obstacleX -= obstacleSpeed;
if (obstacleX < -obstacleWidth) {
obstacleX = SCREEN_WIDTH;
score++;
}
// Collision detection
if (dinosaurX < obstacleX + obstacleWidth && dinosaurX + dinosaurWidth > obstacleX &&
dinosaurY < obstacleY + obstacleHeight && dinosaurY + dinosaurHeight > obstacleY) {
gameOver = true;
}
display.clearDisplay(); // Clear the display
display.drawBitmap(dinosaurX, dinosaurY, dinosaur, dinosaurWidth, dinosaurHeight, WHITE); // Draw the dinosaur
display.fillRect(obstacleX, obstacleY, obstacleWidth, obstacleHeight, WHITE); // Draw the obstacle
drawRoad(); // Draw the road
display.setCursor(0, 0);
display.print("Score: ");
display.println(score);
display.display(); // Update the display
delay(10); // Small delay for smoother animation
}
void drawCross(int x, int y, int width, int height) {
display.drawLine(x, y, x, y + height, WHITE);
display.drawLine(x + width, y, x + width, y + height, WHITE);
display.drawLine(x, y + height / 2, x + width, y + height / 2, WHITE);
}
void drawRoad() {
int roadWidth = 130; // Width of the road (in pixels)
int roadHeight = 2; // Height of the road (in pixels)
int roadX = (SCREEN_WIDTH - roadWidth) / 2; // Center the road horizontally
int roadY = SCREEN_HEIGHT - roadHeight; // Position the road at the bottom
display.fillRect(roadX, roadY, roadWidth, roadHeight, WHITE);
int lineSpacing = 10;
for (int i = 0; i < roadWidth; i += lineSpacing) {
display.drawLine(roadX + i, roadY, roadX + i, roadY + roadHeight, BLACK);
}
}
本文編譯自hackster.io
